HU Series
Hammer Union Protection

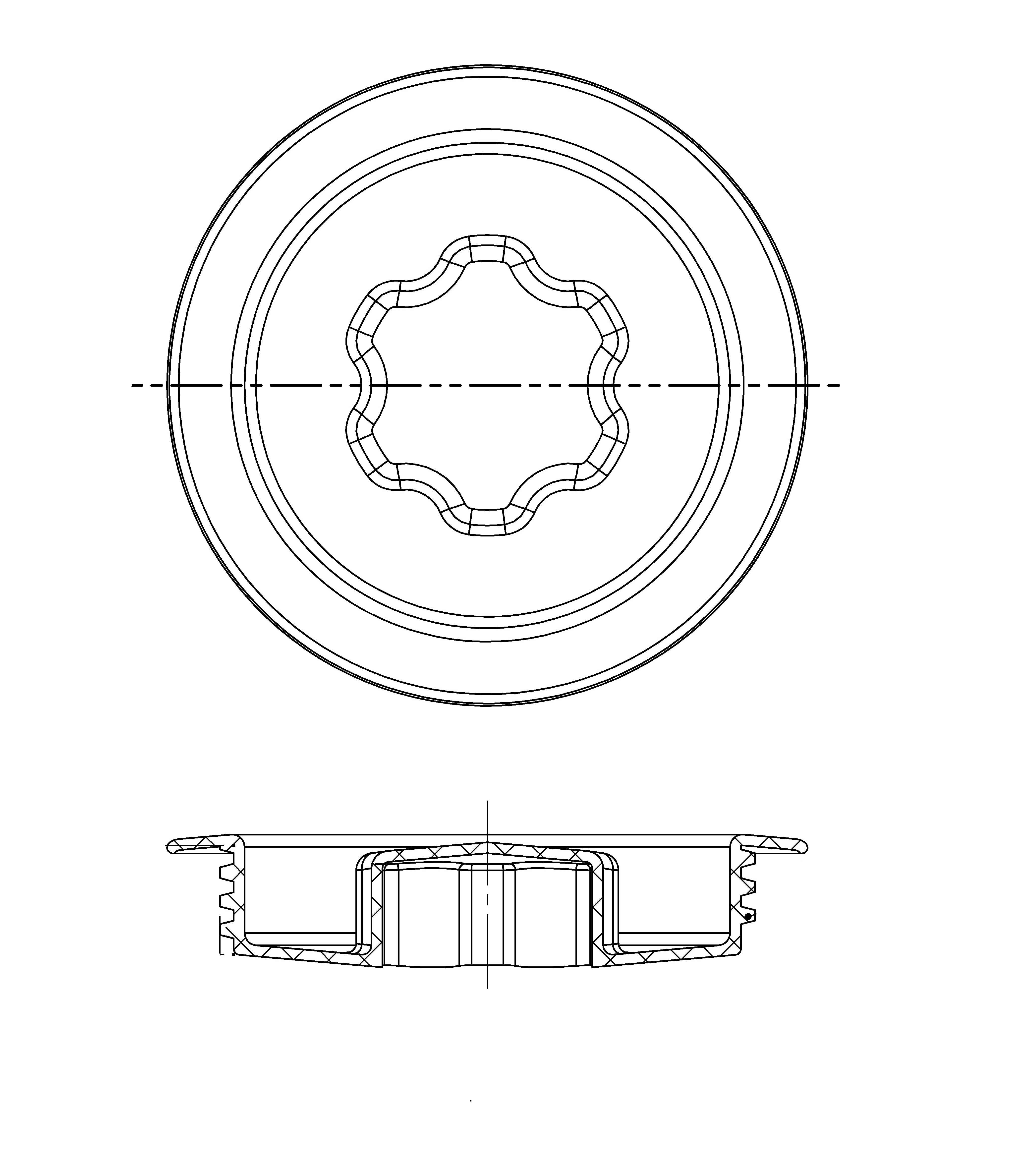

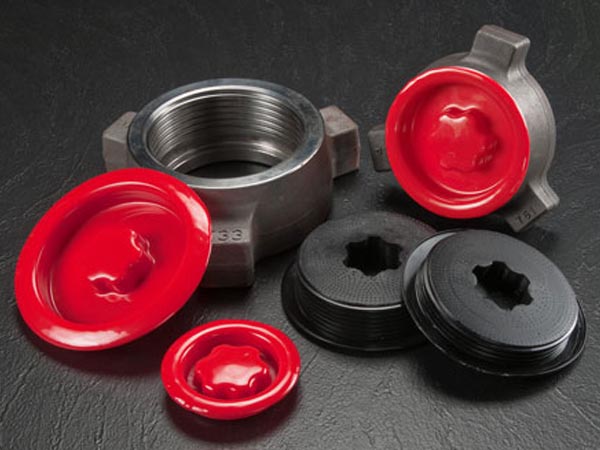

HU series vinyl plugs cover machined threads and sealing surfaces of hammer union joint connections. Includes unique ergonomic handle for easy use. Designed with high durometer vinyl for durability and impact resistance at a lower cost.
- Color coded by FIG number
- Inexpensive
- Durable
Material: Vinyl
Standard Color: Color coded by working pressure
| Item # | Figure | To Fit Nominal Pipe Size | Working Press | |
|---|---|---|---|---|
| HU-100-2 | Fig 100-2 | 2 | 1,000 | |
| HU-100-2.5 | Fig 100-2.5 | 2.5 | 1,000 | |
| HU-100-3 | Fig 100-3 | 3 | 1,000 | |
| HU-100-4 | Fig 100-4 | 4 | 1,000 | |
| HU-100-5 | Fig 100-5 | 5 | 1,000 | |
| HU-100-6 | Fig 100-6 | 6 | 1,000 | |
| HU-206-2 | Fig 200/206/207-2 | 2 | 2,000 | |
| HU-206-3 | Fig 200/206/207-3 | 3 | 2,000 | |
| HU-206-4 | Fig 200/206/207-4 | 4 | 2,000 | |
| HU-206-6 | Fig 200/206/207-6 | 6 | 2,000 | |
| HU-206-8 | Fig 200/206/207-8 | 8 | 2,000 | |
| HU-602-2 | Fig 602-2 | 2 | 6,000 | |
| HU-602-3 | Fig 602-3 | 3 | 6,000 | |
| HU-602-4 | Fig 602-4 | 4 | 6,000 | |
| HU-400-2 | Fig 400-2 | 2 | 4,000 | |
| HU-400-3 | Fig 400-3 | 3 | 4,000 | |
| HU-1002-5 | Fig 1002 | 5 | 10,000 | |
| HU-1002-6 | Fig 1002 | 6 | 10,000 | |
| HU-1002-4L | Fig 1002 (Long) | 4 | 10,000 | |
| HU-1002-4S | Fig 1002 (Short) | 4 | 10,000 | |
| HU-1003-3 | Fig 1003-3 | 3 | 10,000 | |
| HU-1003-4/5 | Fig 1003-4/5 | 4/5 | 10,000 | |
| HU-1502-1 | Fig 1502-1 | 1 | 15,000 | |
| HU-1502-1 1/2 | Fig 1502-1 1/2 | 1 1/2 | 15,000 | |
| HU-1502-2 | Fig 1502-2 | 2 | 15,000 | |
| HU-1502-3 | Fig 1502-3 | 3 | 15,000 | |
| HU-1502-3HD | Fig 1502-3 (Heavy Duty) | 3 | 15,000 | |
| HU-1502-4 | Fig 1502-4 | 4 | 15,000 | |
| HU-1502-5 | Fig 1502-5 | 5 | 15,000 | |
| HU-1502-6 | Fig 1502-6 | 6 | 15,000 | |
| HU-1502-3HDS | ||||
| HU-1502-3XXL |
