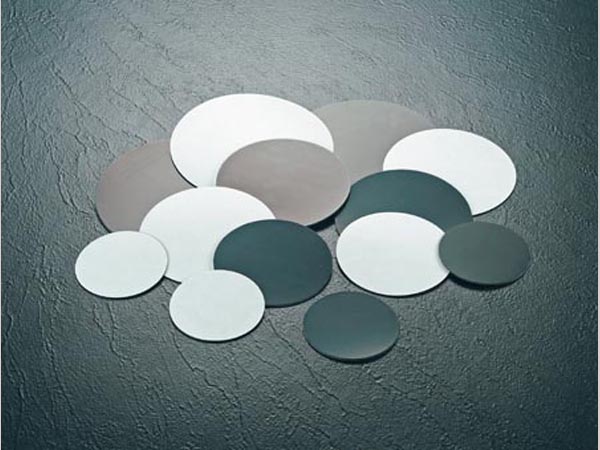

The FAF series self-adhesive flange covers conceal the entire face of flange and sealing surface. The protective backing is easliy peeled off for quick installation. No residue is left on flange after removal. Sized in accordance to ANSI B-16.5 and ANSI B-16.47
Material: High-density polyethylene
Standard Color: Black
Item # | Dim A (IN) | To Fit Nominal Pipe Size | |
---|---|---|---|
FAF-150-1/2 | 3.50 | 1/2 | |
FAF-150-3/4 | 3.88 | 3/4 | |
FAF-150-1 | 4.25 | 1 | |
FAF-150-1 1/4 | 4.62 | 1-1/4 | |
FAF-150-1 1/2 | 5.00 | 1-1/2 | |
FAF-150-2 | 6.00 | 2 | |
FAF-150-2 1/2 | 7.00 | 2-1/2 | |
FAF-150-3 | 7.50 | 3 | |
FAF-150-3 1/2 | 8.50 | 3-1/2 | |
FAF-150-4 | 9.00 | 4 | |
FAF-150-5 | 10.00 | 5 | |
FAF-150-6 | 11.00 | 6 | |
FAF-150-8 | 13.50 | 8 | |
FAF-150-10 | 16.00 | 10 | |
FAF-150-12 | 19.00 | 12 | |
FAF-150-14 | 21.00 | 14 | |
FAF-150-16 | 23.50 | 16 | |
FAF-150-18 | 25.00 | 18 | |
FAF-150-20 | 27.50 | 20 | |
FAF-150-22 | 29.50 | 22 | |
FAF-150-24 | 32.00 | 24 | |
FAF-150-26A | 34.25 | 26 | |
FAF-150-26B | 30.94 | 26 | |
FAF-150-28A | 36.50 | 28 | |
FAF-150-28B | 32.94 | 28 | |
FAF-150-30A | 38.75 | 30 | |
FAF-150-30B | 34.94 | 30 | |
FAF-150-32A | 41.75 | 32 | |
FAF-150-32B | 37.06 | 32 | |
FAF-150-34A | 43.75 | 34 | |
FAF-150-34B | 39.56 | 34 | |
FAF-150-36A | 46.00 | 36 | |
FAF-150-36B | 41.62 | 36 | |
FAF-150-38A | 48.75 | 38 | |
FAF-150-38B | 44.25 | 38 | |
FAF-150-40A | 50.75 | 40 | |
FAF-150-40B | 46.25 | 40 | |
FAF-150-42A | 53.00 | 42 | |
FAF-150-42B | 48.25 | 42 | |
FAF-300-1/2 | 3.75 | 1/2 | |
FAF-300-3/4 | 4.62 | 3/4 | |
FAF-300-1 | 4.88 | 1 | |
FAF-300-1 1/4 | 5.25 | 1-1/4 | |
FAF-300-1 1/2 | 6.19 | 1-1/2 | |
FAF-300-2 | 6.50 | 2 | |
FAF-300-2 1/2 | 7.50 | 2-1/2 | |
FAF-300-3 | 8.25 | 3 | |
FAF-300-3 1/2 | 9.00 | 3-1/2 | |
FAF-300-4 | 10.00 | 4 | |
FAF-300-5 | 11.00 | 5 | |
FAF-300-6 | 12.50 | 6 | |
FAF-300-8 | 15.00 | 8 | |
FAF-300-10 | 17.50 | 10 | |
FAF-300-12 | 20.50 | 12 | |
FAF-300-14 | 23.00 | 14 | |
FAF-300-16 | 25.50 | 16 | |
FAF-300-18 | 28.00 | 18 | |
FAF-300-20 | 30.50 | 20 | |
FAF-300-22 | 33.00 | 22 | |
FAF-300-24 | 36.00 | 24 | |
FAF-300-26A | 38.25 | 26 | |
FAF-300-26B | 34.12 | 26 | |
FAF-300-28A | 40.75 | 28 | |
FAF-300-28B | 36.25 | 28 | |
FAF-300-30A | 43.00 | 30 | |
FAF-300-30B | 39.00 | 30 | |
FAF-300-32A | 45.25 | 32 | |
FAF-300-32B | 41.50 | 32 | |
FAF-300-34A | 47.50 | 34 | |
FAF-300-34B | 43.62 | 34 | |
FAF-300-36A | 50.00 | 36 | |
FAF-300-36B | 46.12 | 36 | |
FAF-300-38A | 46.00 | 38 | |
FAF-300-38B | 48.12 | 38 | |
FAF-300-40A | 48.75 | 40 | |
FAF-300-40B | 50.12 | 40 | |
FAF-300-42A | 50.75 | 42 | |
FAF-300-42B | 52.50 | 42 | |
FAF-400-1/2 | 3.75 | 1/2 | |
FAF-400-3/4 | 4.62 | 3/4 | |
FAF-400-1 | 4.88 | 1 | |
FAF-400-1 1/4 | 5.25 | 1-1/4 | |
FAF-400-1 1/2 | 6.12 | 1-1/2 | |
FAF-400-2 | 6.50 | 2 | |
FAF-400-2 1/2 | 7.50 | 2-1/2 | |
FAF-400-3 | 8.25 | 3 | |
FAF-400-3 1/2 | 9.00 | 3-1/2 | |
FAF-400-4 | 10.00 | 4 | |
FAF-400-5 | 11.00 | 5 | |
FAF-400-6 | 12.50 | 6 | |
FAF-400-8 | 15.00 | 8 | |
FAF-400-10 | 17.50 | 10 | |
FAF-400-12 | 20.50 | 12 | |
FAF-400-14 | 23.00 | 14 | |
FAF-400-16 | 25.50 | 16 | |
FAF-400-20 | 30.50 | 20 | |
FAF-400-18 | 28.00 | 18 | |
FAF-400-22 | 33.00 | 22 | |
FAF-400-24 | 36.00 | 24 | |
FAF-400-26A | 38.25 | 26 | |
FAF-400-26B | 33.50 | 26 | |
FAF-400-28A | 40.75 | 28 | |
FAF-400-28B | 36.00 | 28 | |
FAF-400-30A | 43.00 | 30 | |
FAF-400-30B | 38.25 | 30 | |
FAF-400-32A | 46.25 | 32 | |
FAF-400-32B | 40.75 | 32 | |
FAF-400-34A | 47.50 | 34 | |
FAF-400-34B | 42.75 | 34 | |
FAF-400-36A | 50.00 | 36 | |
FAF-400-36B | 45.50 | 36 | |
FAF-400-38A | 47.50 | 38 | |
FAF-400-38B | 47.50 | 38 | |
FAF-400-40A | 50.00 | 40 | |
FAF-400-40B | 50.00 | 40 | |
FAF-400-42A | 52.00 | 42 | |
FAF-400-42B | 52.00 | 42 | |
FAF-600-1/2 | 3.75 | 1/2 | |
FAF-600-3/4 | 4.62 | 3/4 | |
FAF-600-1 | 4.88 | 1 | |
FAF-600-1 1/4 | 5.25 | 1-1/4 | |
FAF-600-1 1/2 | 6.19 | 1-1/2 | |
FAF-600-2 | 6.50 | 2 | |
FAF-600-2 1/2 | 7.50 | 2-1/2 | |
FAF-600-3 | 8.25 | 3 | |
FAF-600-3 1/2 | 9.00 | 3-1/2 | |
FAF-600-4 | 10.75 | 4 | |
FAF-600-5 | 13.00 | 5 | |
FAF-600-6 | 14.00 | 6 | |
FAF-600-8 | 16.50 | 8 | |
FAF-600-10 | 20.00 | 10 | |
FAF-600-12 | 22.00 | 12 | |
FAF-600-14 | 23.75 | 14 | |
FAF-600-16 | 27.00 | 16 | |
FAF-600-18 | 29.25 | 18 | |
FAF-600-20 | 32.00 | 20 | |
FAF-600-22 | 34.25 | 22 | |
FAF-600-24 | 37.00 | 24 | |
FAF-600-26A | 40.00 | 26 | |
FAF-600-26B | 35.00 | 26 | |
FAF-600-28A | 42.25 | 28 | |
FAF-600-28B | 37.50 | 28 | |
FAF-600-30A | 44.50 | 30 | |
FAF-600-30B | 40.25 | 30 | |
FAF-600-32A | 47.00 | 32 | |
FAF-600-32B | 42.75 | 32 | |
FAF-600-34A | 49.00 | 34 | |
FAF-600-34B | 45.75 | 34 | |
FAF-600-36A | 51.75 | 36 | |
FAF-600-36B | 47.75 | 36 | |
FAF-600-38A | 50.00 | 38 | |
FAF-600-38B | 50.00 | 38 | |
FAF-600-40A | 52.00 | 40 | |
FAF-600-40B | 52.00 | 40 | |
FAF-900-1/2 | 4.75 | 1/2 | |
FAF-900-3/4 | 5.12 | 3/4 | |
FAF-900-1 | 5.88 | 1 | |
FAF-900-1-1/4 | 6.25 | 1-1/4 | |
FAF-900-1 1/2 | 7.00 | 1-1/2 | |
FAF-900-2 | 8.50 | 2 | |
FAF-900-2-1/2 | 9.62 | 2-1/2 | |
FAF-900-3 | 9.50 | 3 | |
FAF-900-4 | 11.50 | 4 | |
FAF-900-5 | 13.75 | 5 | |
FAF-900-6 | 15.00 | 6 | |
FAF-900-8 | 18.50 | 8 | |
FAF-900-10 | 21.50 | 10 | |
FAF-900-12 | 24.00 | 13 | |
FAF-900-14 | 25.25 | 14 | |
FAF-900-16 | 27.25 | 16 | |
FAF-900-18 | 31.00 | 18 | |
FAF-900-20 | 33.75 | 20 | |
FAF-900-24 | 41.00 | 24 | |
FAF-900-26A | 42.75 | 26 | |
FAF-900-26B | 40.25 | 26 | |
FAF-900-28A | 46.00 | 28 | |
FAF-900-28B | 43.50 | 28 | |
FAF-900-30A | 48.50 | 30 | |
FAF-900-30B | 46.50 | 30 | |
FAF-900-32A | 51.75 | 34 | |
FAF-900-32B | 48.75 | 32 | |
FAF-900-34A | 55.00 | 34 | |
FAF-900-34B | 51.75 | 34 | |
FAF-1500-1/2 | 4.75 | 1/2 | |
FAF-1500-3/4 | 5.12 | 3/4 | |
FAF-1500-1 1/4 | 6.25 | 1-1/4 | |
FAF-1500-1 | 5.88 | 1 | |
FAF-1500-1 1/2 | 7.00 | 1-1/2 | |
FAF-1500-2 | 8.50 | 1 | |
FAF-1500-2 1/2 | 9.62 | 2-1/2 | |
FAF-1500-3 | 10.50 | 3 | |
FAF-1500-4 | 12.25 | 4 | |
FAF-1500-5 | 14.75 | 5 | |
FAF-1500-6 | 15.50 | 6 | |
FAF-1500-8 | 19.00 | 8 | |
FAF-1500-10 | 23.00 | 10 | |
FAF-1500-12 | 26.50 | 12 | |
FAF-1500-14 | 29.50 | 14 | |
FAF-1500-16 | 32.50 | 16 | |
FAF-1500-18 | 36.00 | 18 | |
FAF-1500-20 | 38.75 | 20 | |
FAF-1500-24 | 46.00 | 24 | |
FAF-2500-1/2 | 5.25 | 1/2 | |
FAF-2500-3/4 | 5.50 | 3/4 | |
FAF-2500-1 | 6.25 | 1 | |
FAF-2500-1 1/4 | 7.25 | 1-1/4 | |
FAF-2500-1 1/2 | 8.00 | 1-1/2 | |
FAF-2500-2 | 9.25 | 2 | |
FAF-2500-2 1/2 | 10.50 | 2-1/2 | |
FAF-2500-3 | 12.00 | 3 | |
FAF-2500-4 | 14.00 | 4 | |
FAF-2500-5 | 16.50 | 5 | |
FAF-2500-6 | 19.00 | 6 | |
FAF-2500-8 | 21.75 | 8 | |
FAF-2500-10 | 26.50 | 10 | |
FAF-2500-12 | 30.00 | 12 | |
FAF-75-26 | 30.00 | 26 | |
FAF-75-28 | 32.00 | 28 | |
FAF-75-30 | 34.00 | 30 | |
FAF-75-32 | 36.00 | 32 | |
FAF-75-34 | 38.00 | 34 | |
FAF-75-36 | 40.69 | 36 | |
FAF-75-40 | 44.69 | 40 | |
FAF-75-42 | 46.69 | 42 | |
FAF-75-44 | 49.25 | 44 | |
FAF-75-46 | 51.25 | 46 | |
FAF-75-48 | 53.25 | 48 | |
